  PRODUCT -- Vacuum Mixer Series Current Page:Home > Product

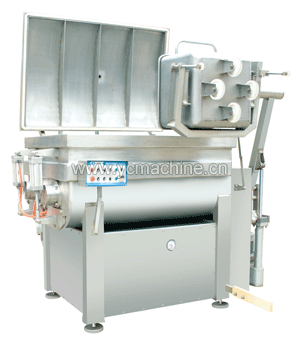

Meat Vacuum Mixer ZKJB-150.300.600.1200

YC Machanism meat Vacuum Mixer is designed full 304 stainless steel built with two shafts for mixing, with its specialty switching between clockwise and counter-clockwise rotation, the meat mixing speed and effect produced can be greatly improved. The vacuum level is adjustable to your option, making a more evenly-distributed raw material for better product quality. The air trapped in the materials during its front-end production processes can be sucked out, and an oxygen-free disinfection can be made to the materials, producing a superior looking of the meat under processing, and consequently the shelf lie of your products can be extended. Its made by stainless steel greatly facilitates your cleaning operation. The specialty pneumatics built-in can automatically open and close the cover and the discharger cover.





Big capacity Vacuum Mixer Advantages:

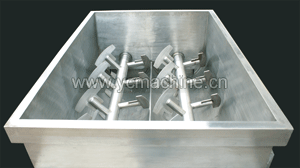

1. Double action mixing arm features paddles that gently lift and mix  product.
2. Easily removable mixing arm for better sanitation.
3. Automatic feeding.
4. Improves moisture and protein retention.
5. Reduces bacteria count and contaminants.
6. Produces a quality product with minimal temperature rise.
7. Increased yields through even distribution and gentle blending of meat, fat, spices and other ingredients.

Maintain optimum temperature of the meat during mixing which is recommended for treatment of raw mince meat. Maintaining given temperature at a required level prevents development of microbes and also makes it possible to obtain of optimum protein bonding, stabilizing the natural color of the products, increasing the production output and finally a high production quality with keeping of the microbiological safety independently of temperature conditions. Cooling device is a separate individual unit.

Model
Capacity
(Kg/Time)
Tank
Volume
(L)
Power
(KW)
Mixing
Speed
(r/min)
Vacuum
Level
(Mpa)
Rated
Voltage
(V)
Dimensions
(mm)
ZKJB-150
120
150
2.95
56
0~ - 0.085
380
1400*1100*1300
ZKJB-300
280
300
5.15
63
0~ - 0.085
380
1400*1250*1400
ZKJB-600
With elevator
420
600
7.85
50
0~ - 0.085
380
2080*1920*1620
ZKJB-1200
With elevator
900
1200
12.85
50
0~ - 0.085
380
2420*2300*1900
